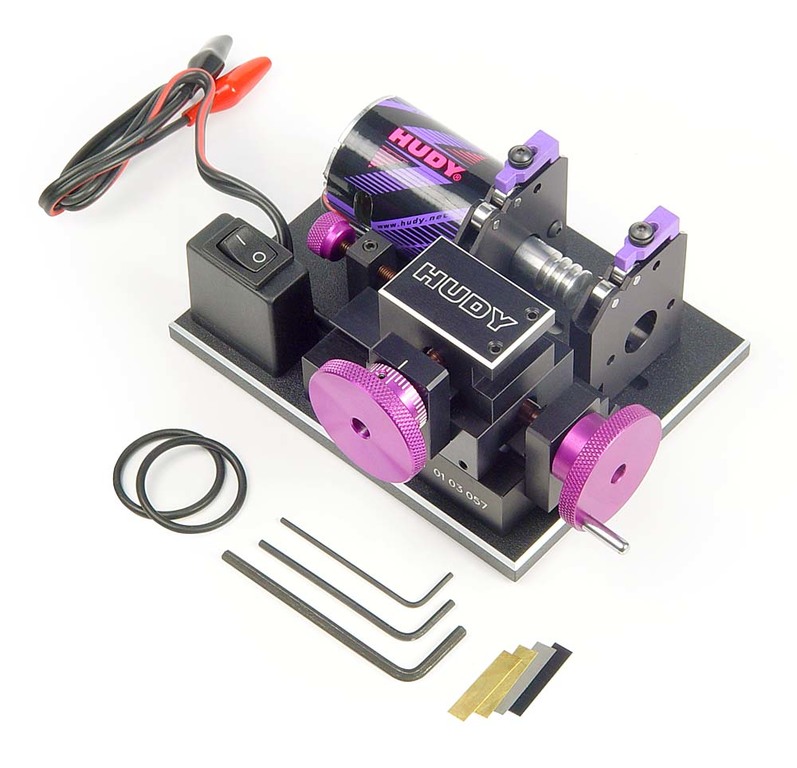

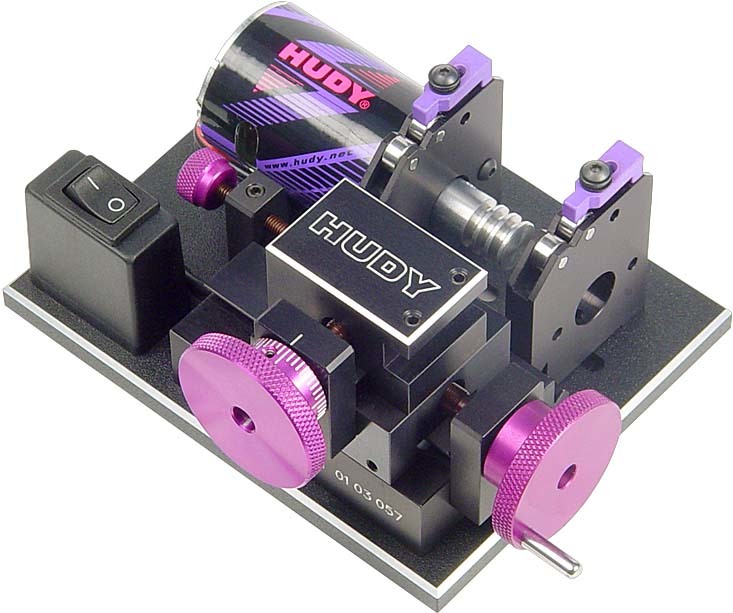

• comm lathe for modified motors
• black hard-anodized surface
• selected stands with ball-bearing guides (Hudy patent) and plastic clips for armature
• stands keyed to common channel for perfect alignment
• ultra-fine pitch lead screw for super-accurate tool movement
• super-accurate backlash limitation of the tool block and supports ensures vibration-free movement
• installed slave motor, connection cable, switch box
• engraved unique ID
• all accessories included

• installed slave motor with connection to 4.8V DC source (4x1.2V battery pack)
• installed switch box, connection cable
• adjustable back stop screw with small purple wheel
• glued anti-vibration pads eliminate all vibrations

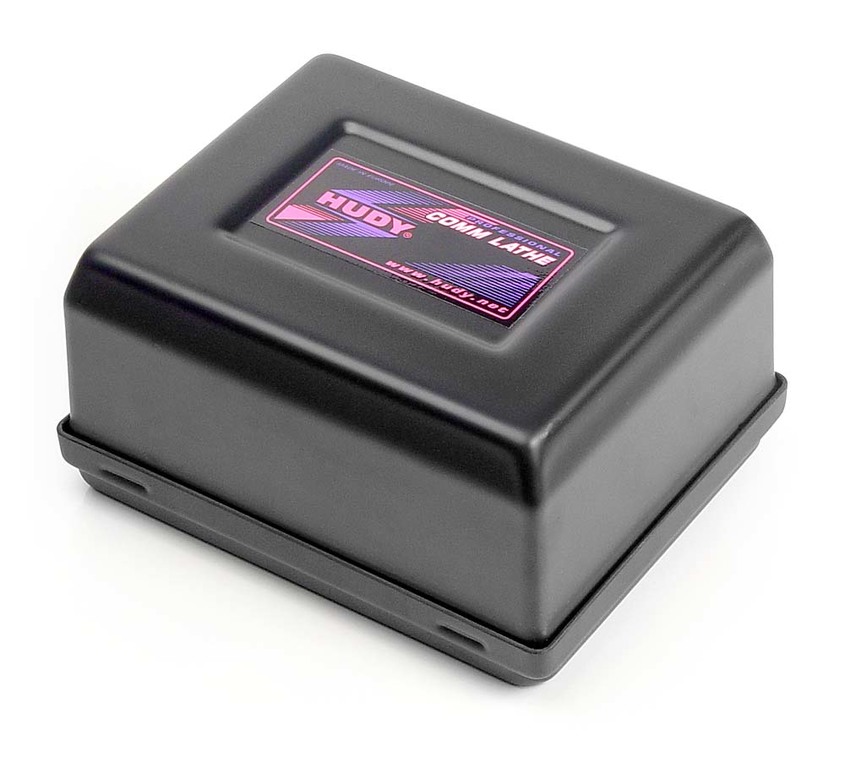

• handy carrying case
• drive belts
• shims for tool height adjustment
• 3 hex-wrenches for lathe adjustment
• cutting tool is not included - #101081 Diamond Cutting Tool is recommended
• don't forget to check out recommended option parts

This lathe comes with ball-bearing guides, but it is also available with ultra-hardened steel "V" guides.
Do not know which type to purchase? Read the FAQ.

A fine pitch thread is used on the feed screw; one graduation on the feed knob corresponds to a 0,01 mm movement of the tool bit, all this without backlash.

Surface of the supports is treated to ensure smooth movement of the tool block.
It is possible to easily and precisely adjust the movement of the cutting tool operating wheel. Tighten or loosen the adjustment screw in the left side of the tool head, which adjusts the pressure on the plastic insert-pad, resulting in fine control of the tightness of tool head movement.

Accurate adjustment of stand positioning.
Stands are produced in pairs to ensure 100% similarity, and are both keyed into a common channel to ensure perfect alignment. Plastic clips for armature are included as standard accessories.

New small wheel for backstop adjustment.

Revolutionary armature axial support. Shaft spins between three ball bearings in Axial Support - no vibrations whatsoever!
#101900 Hudy Axial Support available as option only. A "must have" option for professional cutting.
