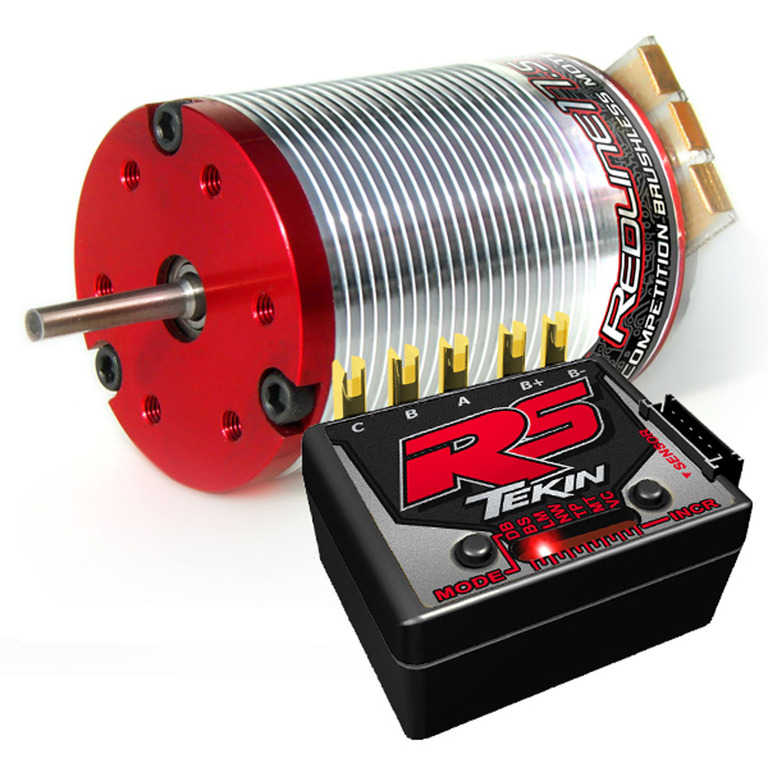

The RS Brushless Speed Control is the Next Generation in Intelligent Operating Motor Drive Technology.  Designed with nothing but performance in mind and made with the industry's finest components.  The RS delivers what racers require; reliability, precise control and unmatched power handling capability.  The RS drives Brushless Sensored, Brushless Sensorless and Brushed motors and can be matched with Lipo, NiMH or NiCd Batteries.

TT1152  RS ESC
TT2150  RS+21.5 Redline S
TT2151  RS+17.5 Redline S
TT2152  RS+13.5 Redline S
TT2153  RS+10.5 Redline S
TT2154  RS+9.5 Redline S
TT2155  RS+8.5 Redline S
TT2156  RS+7.5 Redline S
TT2157  RS+6.5 Redline S
TT2158  RS+5.5 Redline S

TT1153  RSPro ESC
TT2130  RSPro+21.5 RedlineS
TT2131  RSPro+17.5 RedlineS
TT2132  RSPro+13.5 RedlineS
TT2133  RSPro+10.5 RedlineS
TT2134  RSPro+9.5 RedlineS
TT2135  RSPro+8.5 RedlineS
TT2136  RSPro+7.5 RedlineS
TT2137  RSPro+6.5 RedlineS
TT2138  RSPro+5.5 RedlineS
TT2139  RSPro+4.5 RedlineS
TT2140  RSPro+3.5 RedlineS
TT2141  RSPro+2.5 RedlineS

Features

• Drives Sensored/Sensorless Brushless and Brushed Motors
• Easily Access Programming, Anywhere, Anytime
• HotWire PC Interface for Advanced Programming and Updating
• D2: Dual Drive Mode Technology
• On-Board Temperature Indicator
• HDAC: High Density Copper Fet Boards
• Sensor Plug for Precise Commutation with all Motors
• Solder Posts for Easy Wire Replacement
• Self Test Diagnostics and Factory Reset
• Adjustable Drag Brakes
• Pit Tune Mode
• DGF2: Digital Glitch Filtering V2
• QuickTune™ Programming
• One-Touch Radio Calibration

Program Features

• Drag Brake (13 steps)
• Brake / Reverse Strength (13 steps)
• Current Limiter (none + 12 steps)
• Neutral Width (7 steps)
• Throttle Profiles (7 choices)
• Motor/Reverse Type: Brushless, Brushed, No Rev, Rev Delay
• Voltage Cutoffs (none, 2S, 3S, Custom)
• Timing Advance when used with Tekin Hotwire
• Extensive Tuning via Tekin HotWire PC Interface (sold separately)

RS Specs

• Controls: Forward/Brake/Reverse
• ON Resistance: 0.0001 Ohms brushed fwd mode, 0.0003 Ohms brushless mode, 0.0003 Ohms brushed fwd/rev mode
• Input Voltage: 4-9 Cells, 3S Lipo
• BEC: 6.0V/3.0A
• Motor Limit Brushless Mode: 5 Turn, 36mm can
• Motor Limit Brushed Fwd Only Mode: None
• Motor Limit Brushed Fwd/Rev Mode: 12 Turn
• Throttle Profiles: 7 choices (on board)
• Brushed Modes: Fwd Only, Fwd/Rev, Rev Delay
• Brushless Modes: Fwd Only, Fwd/Rev, Rev Delay
• Dimensions: 1.3 x 1.00" x .45" (33 x 25.4 x 11.5mm)
• Weight: 2.0oz with included 12G wiring

RS Pro Specs

• Controls: Forward/Brake/Reverse
• ON Resistance: 0.00005 Ohms brushed fwd mode, 0.00015 Ohms brushless mode, 0.00015 brushed fwd/reverse mode
• Input Voltage: 4-9 Cells, 3S Lipo
• BEC: 6.0V/3.0A
• Motor Limit: None
• Throttle Profiles: 7 choices (on board)
• Brushed Modes: Fwd Only, Fwd/Rev, Rev Delay
• Brushless Modes: Fwd Only, Fwd/Rev, Rev Delay
• Dimensions: 1.3 x 1.00" x .60" (33 x 25.4 x 15.25mm)
• Weight: 2.3oz with included 12G wiring
