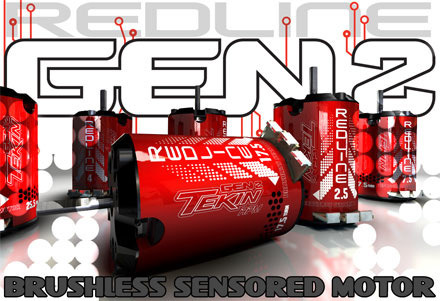

Redline Gen2 Sensored 7.5 Brushless Motor
Manufacturer: Team Tekin
RC DisCo Part No: TT2411
Out of Stock Out of Stock - Discontinued Product
€136.79 (RRP inc. VAT)
€109.43 (RRP inc. VAT)

Tekin's second generation motors carry forward engineering principles and performance benchmarks set by the Tekin Redline name. The Gen2 Redline Sensored Motor incorporates the latest technology advancements in brushless motor design and manufacturing, giving you the torque and RPMs you want when you need it. On Road or Off, Tekin's Gen2 Sensored motors handle your demands and deliver smooth power across all RPMs.

With the Gen2 advancement comes the Redline Gen2 RPM series motors. Available in 13.5, 17.5 and 21.5 turns, the RPM motors have been tweaked to provide that extra edge needed in stock racing competition. Not only do the RPM versions offer a higher overall RPM output, they are also lighter than their Gen2 counterparts. Specifically designed for 1/12, 1S LiPo and stock racing, the Gen2 RPM motors give you the edge over the competition.

The Gen2 modified group of motors also carry significant changes and are tuned specifically for modified racing. The 10.5 through 6.5 turn motors all come standard with a 13mm rotor and the 5.5 through 2.5 turn are equipped with a 13mm High Torque rotor, providing the horsepower needed in modified racing.



CNC Machined T 6061 Billet Aluminum Heatsink Can
Neodymium Sintered Magnet
Precision Engineered for Maximum Energy Conversion
High Purity Copper Windings Maximize Conductivity
Low Resistance, High Power Solder Tabs
Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems
Anodized Endbell plates maximize corrosion and wear resistance
High RPM precision bearings
Rebuildable Design
Solderless Sensor PCB replacement
Adjustable Timing



Weight: 6.3oz (180g) / RPM version: 6.2oz (177g)
Shaft Dimensions: 5 x 15.3mm
Motor Diameter: 35.85mm / 1.40"
Motor Length: 51.8mm / 2.03"
Bearing Dimensions: front: 4x13x5mm rear: 1/8x3/8x5/32"
