XRAY XR352282 ALU CASTER BLOCK 12° LEFT - 3 ROLL-CENTERS - SWISS 7075 T6 - HARD COATED @ €54.5

Product Information

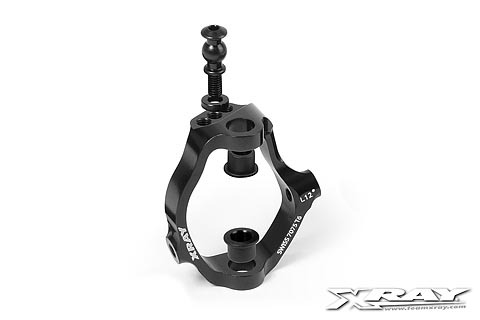

ALU CASTER BLOCK 12° LEFT - 3 ROLL-CENTERS - SWISS 7075 T6 - HARD COATED

Manufacturer: Xray

RC DisCo Part No: XR352282

Good Stock - Only available whilst stock lasts

€54.5 (RRP inc. VAT)

Authentic XRAY alu caster blocks for XB9 are CNC-machined from premium Swiss 7075 T6 aluminium, hardcoated for extra durability and long life. Ultra-strong construction provides very long life and durability in even the most extreme racing conditions.

Lightweight block features ‘zero kingpin’ suspension geometry and the new 3 roll center positions which allow for very fast and comfortable roll center adjustment. Using the shims under the front linkage a different roll center position can be set-up very easily.

The preset caster block is integrated and non-adjustable. Combined with the XB9 front kick-up of 10° this block gives a total caster angle of 20°/22°/24° for increased steering and precision. Includes XRAY composite bushings for super-precise and smooth steering action. Laser-engraved with the XRAY registered logo for authenticity, and caster value and R/L symbol for quick and easy identification.

Precision machined with highest tolerances using premium fully-automatic German CNC-machines. High-quality hardcoating is done at XRAY’s own in-house fully-robotic hardcoating line, ensuring a perfect hardcoated surface every time.

CNC-machined from premium Swiss 7075 T6 aluminium
3 roll-center positions for fast and comfortable adjustment
Hardcoated for extra durability and long life
Ultra-strong construction provides very long life and durability
‘Zero kingpin’ suspension geometry
Preset integrated caster block
Increased steering and precision
Composite bushings for super-precise and smooth steering action
Laser-engraved with caster value and R/L symbol for quick and easy identification

XR352270 Alu Caster Block 10° Right - 7075 T6 - 3 Roll-centers

XR352272 Alu Caster Block 12° Right - 7075 T6 - 3 Roll-centers

XR352274 Alu Caster Block 14° Right - 7075 T6 - 3 Roll-centers

XR352280 Alu Caster Block 10° Left - 7075 T6 - 3 Roll-centers

XR352282 Alu Caster Block 12° Left - 7075 T6 - 3 Roll-centers

XR352284 Alu Caster Block 14° Left - 7075 T6 - 3 Roll-centers

This Part Fits On	Standard Part	Option Part
XR350002 XB8-EC - 2007
XR350003 XB808 - 2008
XR350004 XB808 - 2009
XR350005 XB808 - 2010
XR350006 XB808 - 2011
XR350150 XB808E - 2010
XR350007 XB9 - 2012
XR350008 XB9 - 2013
XR359705 XB9E - 2013
XB808 - 2008
